Microservices # LoadBalancing

 Here is a clear, real-world explanation of how Load Balancing works in Microservices, with diagrams and simple examples.

This will help you understand it like an architect. 👇

---

🚀 How Load Balancing Works in Microservices

In microservices, multiple instances of the same service run to handle high traffic.
A load balancer distributes incoming requests across these service instances so no single instance gets overloaded.

---

⭐ Types of Load Balancing in Microservices

There are three main types:

---

1️⃣ Client-Side Load Balancing

The client decides which instance to call.

How it works:

1. Client calls the Service Registry (Eureka/Consul)

2. It gets a list of available service instances

3. Uses an algorithm (round-robin, random, etc.)

4. Sends the request directly to the chosen instance

Example in Spring Cloud:

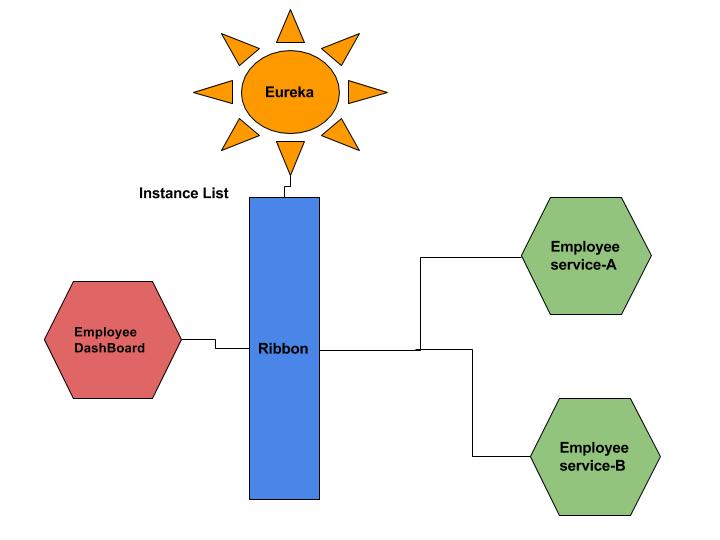

• Ribbon (deprecated but used historically)

• Spring Cloud LoadBalancer (new)

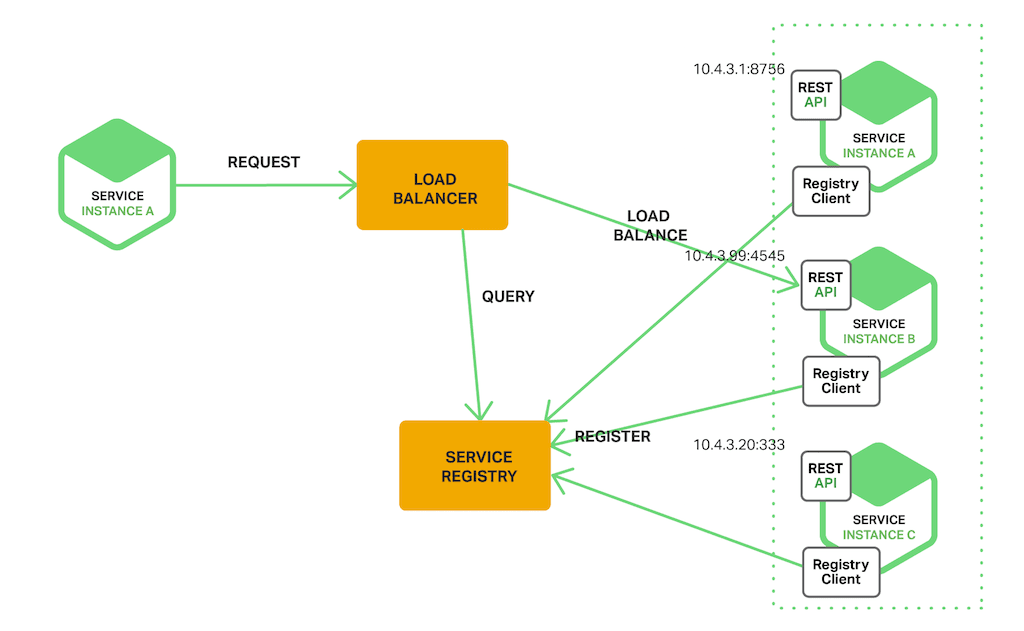

Diagram

Code Example (Spring Cloud LoadBalancer)

@LoadBalanced
@Bean
public RestTemplate restTemplate() {
    return new RestTemplate();
}

When calling:

restTemplate.getForObject("http://payment-service/pay", String.class);

It selects one available instance automatically.

---

2️⃣ Server-Side Load Balancing

The API Gateway or Load Balancer does the balancing.

Clients do NOT know where services are hosted.

Flow:

Client → API Gateway → Load Balancer → Service Instance

Tools:

• NGINX

• HAProxy

• AWS ALB/ELB

• Envoy

• Kong / Zuul / Spring Cloud Gateway

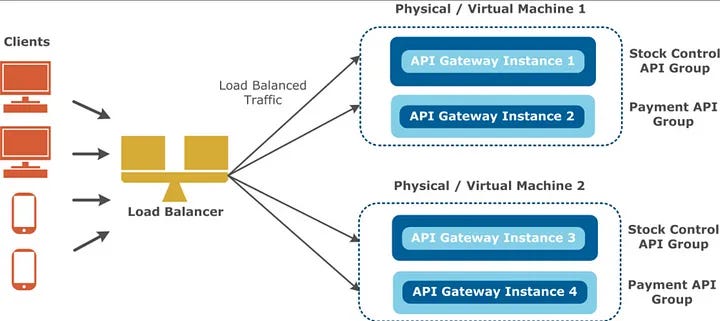

Diagram

Why it's useful?

• Centralized routing

• Security enforcement

• Reliable failover

• Good for external traffic

---

3️⃣ Sidecar / Service Mesh Load Balancing

Here, each service has a sidecar proxy (Envoy) that handles:

✔ Load balancing
✔ Traffic routing
✔ TLS/mTLS
✔ Circuit breaking
✔ Retries

You don’t write LB logic in the service.

Technologies:

• Istio

• Linkerd

• Consul Connect

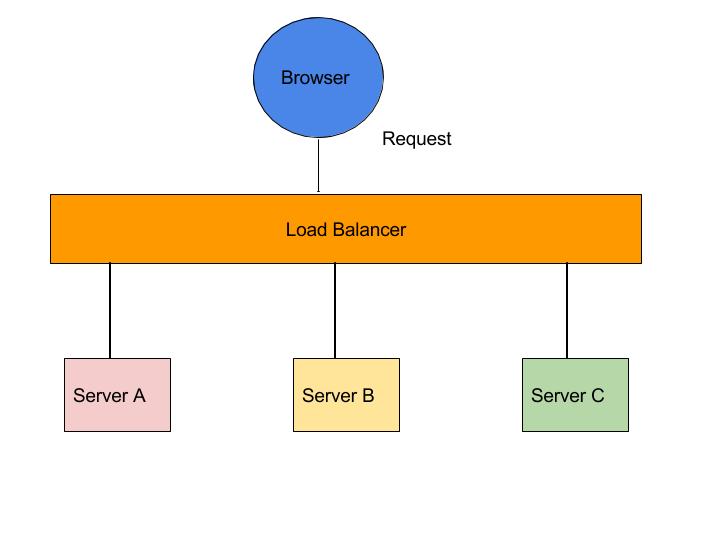

Diagram

---

⚙️ Load Balancing Algorithms Used

Algorithm	How it works	When used
Round Robin	Each request goes to the next instance	Most common
Random	Pick any instance randomly	Avoids patterns
Least Connections	Sends request to instance with lowest load	High-traffic systems
Weighted Round Robin	Prioritize stronger instances	Heterogeneous servers
Consistent Hashing	Same client → same instance	Caching, session stickiness

Most load balancers support these.

---

🔥 Example: Load Balancing in a Real Microservices System

Let’s say you have a Payment Service with 3 instances:

• payment-1 → 10.0.1.15

• payment-2 → 10.0.1.16

• payment-3 → 10.0.1.17

The client calls:

http://payment-service/pay

Behind the scenes:

👉 Client-Side LB

The client selects one of the 3 IPs and calls it directly.

👉 Server-Side LB

Gateway or ALB forwards requests:

Request #	Instance
1	payment-1
2	payment-2
3	payment-3
4	payment-1
etc…	round robin

👉 Service Mesh

Sidecar proxies handle routing automatically.

---

⭐ Why Load Balancing is Critical in Microservices?

✔ Ensures high availability
✔ Prevents overload of a single instance
✔ Allows auto-scaling (add/remove instances dynamically)
✔ Supports zero-downtime deployments (rolling updates)
✔ Enables traffic shaping and rate limiting

---

📌 Final Summary

Type	Used In	Who chooses the instance
Client-Side LB	Spring Cloud, Netflix OSS	Client
Server-Side LB	API Gateways, AWS ALB	Gateway/LB
Service Mesh LB	Istio, Consul Connect	Sidecar proxy

---
